EDWARDS 241 Punch Assembly For 25 Ton Ironworkers - ED9-AC1055-1

EDWARDS 241 Punch Assembly For 25 Ton Ironworkers - ED9-AC1055-1

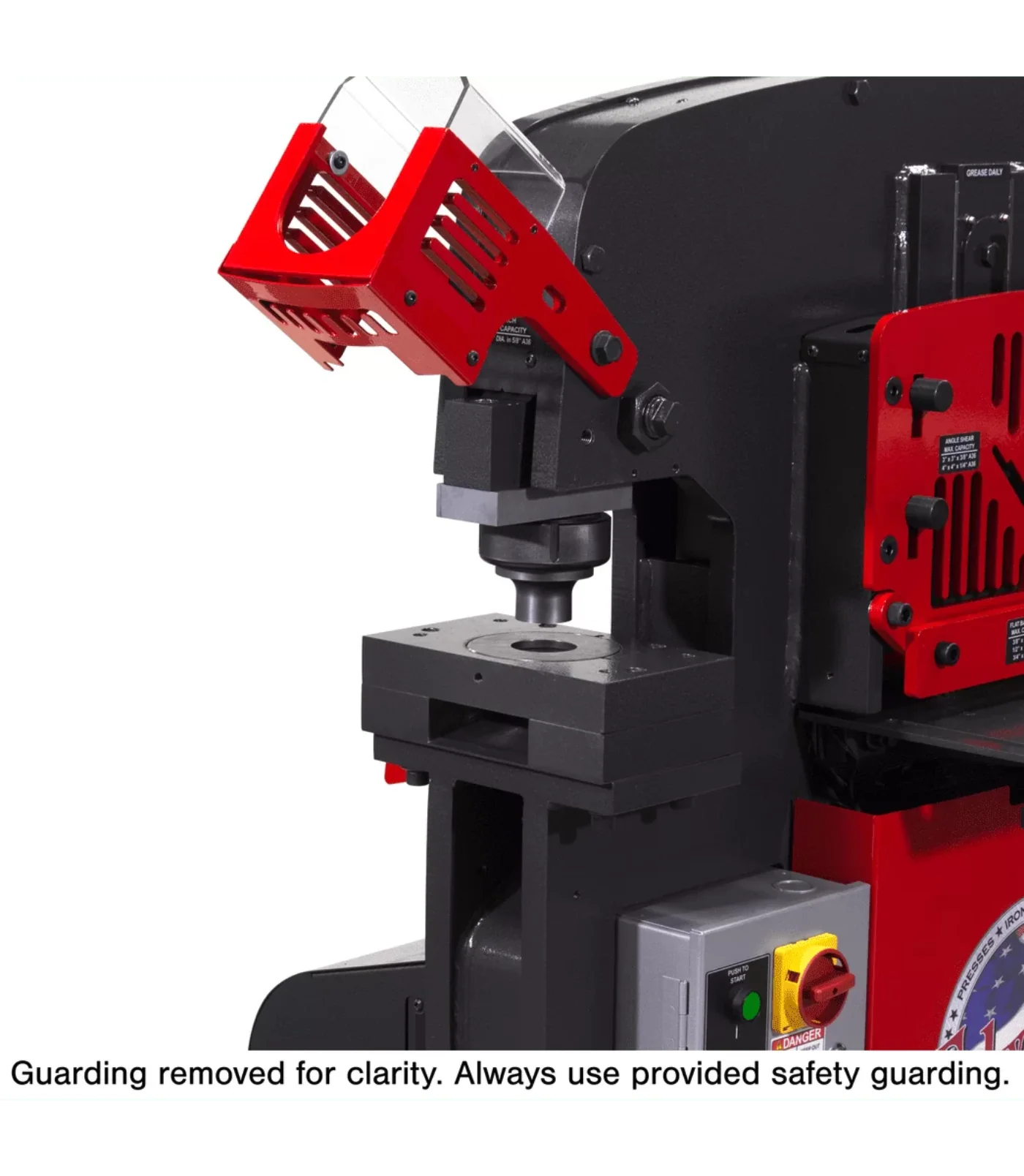

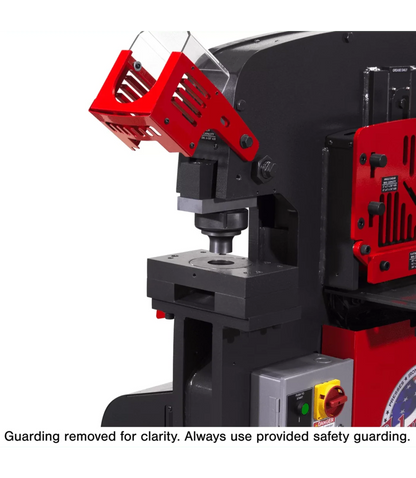

The 241 Punch Assembly accommodates punch & die sets in various shapes and sizes from 1" up to 4". Punch large holes and slots in anything from sheet metal to steel plate.

Features

• Punch large holes and slots in anything from heavy sheet metal to steel beams.
• Replaces the installed Punch Assembly on the 25 Ironworkers.
• Requires 241 Punch & Die sets (contact Edwards for pricing and availability).
• 241 punch assembly accommodates punch and die sets in various shapes and sizes from 1" up to 4".

What our Experts Think

• Precision punching for 25‑ton ironworkers
  Designed specifically to deliver accurate, clean hole punching on structural materials — ideal for angle, channel, and flat bar jobs.
• Durable, industrial‑grade construction
  Built with hardened tool steel and precision machining to withstand repeated heavy use while maintaining consistent results.
• Optimized for productivity
  Smooth material flow and efficient punch/die geometry reduce setup time and improve cycle speed — helping shops move through jobs faster.
• Easy integration with EDWARDS systems
  Engineered as a direct fit for EDWARDS 25‑ton ironworkers and compatible accessories, ensuring quick installation and reliable performance.
• Improved alignment and repeatability
  Helps operators maintain precise hole placement run after run, reducing rework and waste.

Q&A

**Q: What is the EDWARDS 241 Punch Assembly for 25 Ton Ironworkers (ED9‑AC1055‑1)?
A: A heavy‑duty punch assembly designed to fit 25 ton Edwards ironworkers, enabling reliable punching of holes in metal with precision and durability.

Q: What hole size does it support?
A: It’s engineered to deliver a 2‑41/64″ (≈ 2.64″) maximum hole capacity, expanding the versatility of your ironworker for larger punching jobs.

Q: Which machines is this compatible with?
A: Specifically made for Edwards 25 ton ironworker models, ensuring correct fit and performance with your machine.

Q: What are the performance benefits?
A: Provides clean, repeatable holes with reduced deflection and wear — ideal for metal fabrication, structural steelwork, and maintenance tasks.

Q: Is the construction durable?
A: Yes — built from high‑strength steel components for long service life under heavy use.

Q: Why upgrade to this punch assembly?
A: It expands punching capability beyond standard sizes, improves precision, and reduces downtime with a robust, reliable assembly.

Q: Who is this product for?
A: Metal fabricators, machinists, and industrial shops with a 25‑ton ironworker needing increased punching capacity and productivity.

Maintenance Tips

• Clean After Use: Remove metal shavings, dust, and oil buildup to protect punch surfaces and maintain precision.
• Inspect for Wear: Regularly check punch and die for dull edges, cracks, or deformation; replace or sharpen as needed.
• Lubricate Moving Parts: Apply light machine oil to the punch assembly and guides to reduce friction and extend tool life.
• Ensure Proper Alignment: Verify the punch and die are correctly seated in the ironworker to avoid uneven wear or damage.
• Match Material Thickness: Use punch assembly within its rated capacity to prevent breakage or tool strain.
• Secure Mounting Hardware: Tighten bolts and clamps to maintain stable, repeatable punching.
• Protect from Corrosion: Store in a dry environment and lightly oil steel surfaces to prevent rust.
